Case Study: Preserving Waltham Abbey’s Cemetery Chapel
1.0 Heritage Context & Modern Utility Built in the late 19th century for funeral services, this Victorian chapel in Essex lost its original purpose due to the rise of cremation and centralized crematoria. Waltham Abbey Town Council repurposed the unheated building into a groundskeeping tool store. In October 2024, Pineapple Structures Ltd investigated the neglected building to diagnose environmental strain and prevent permanent heritage loss.

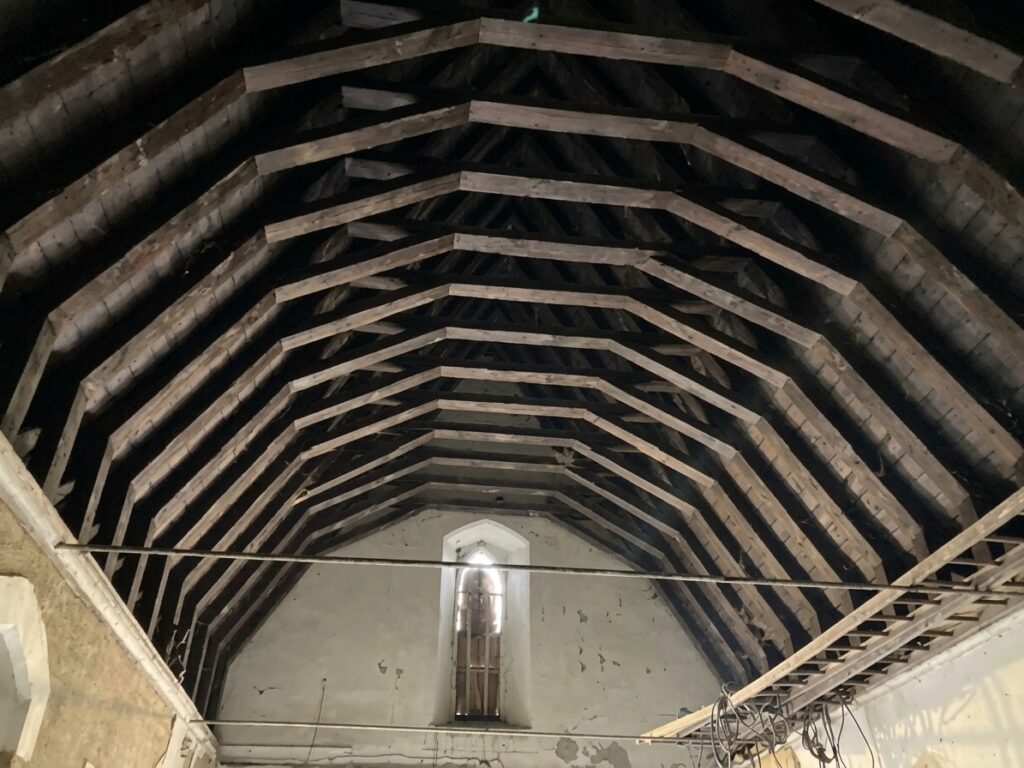

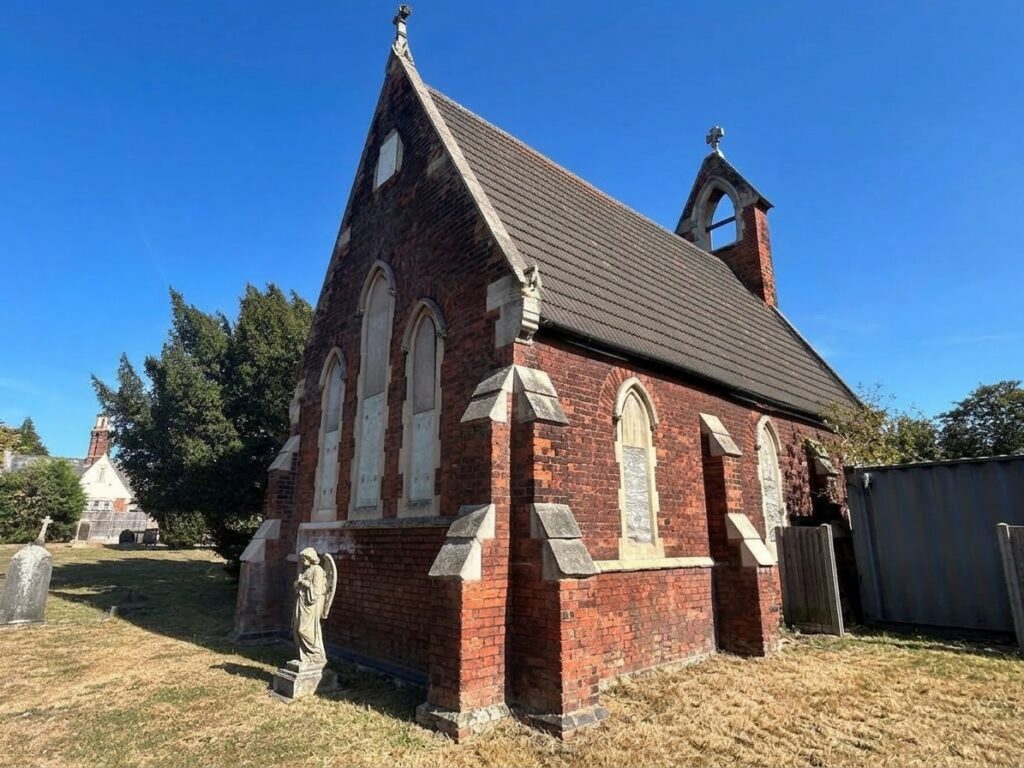

2.0 Engineering Profile & Geotechnical Threat The chapel’s high interior features solid masonry walls supported by 450mm corner buttresses, stepped front buttressing for an overhead bell tower, and a vaulted timber roof tied with three heavy steel rods. However, the underlying London Clay subsoil poses a major threat, aggressively shrinking and swelling as seasonal moisture changes.

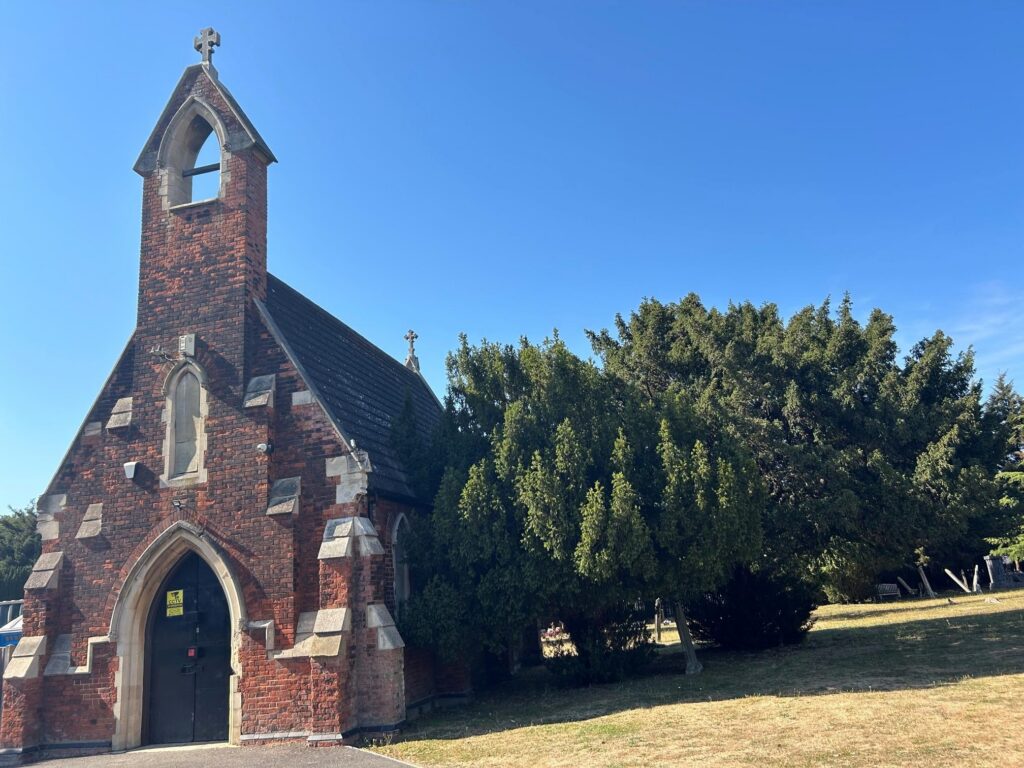

3.0 Key Diagnostics: Environmental & Superstructural Deficiencies Nearby trees—including two Japanese Yews 3m and 5.5m away—extract deep soil moisture during dry periods. This clay shrinkage caused foundation settlement and cracking across window and entrance arches. Above ground, mortar failure left the rear gable’s decorative stone cross precariously displaced, the rear parapets leaning, the bell tower twisted, and exterior brickwork and internal plaster severely decayed.
4.0 Preservation Strategy & Regulatory Compliance Unlisted but protected by a Conservation Area and Tree Preservation Orders (TPOs), the chapel required a balanced preservation roadmap:
Fabric Restoration & Safety: Prescribed breathable lime mortar repointing for the masonry and flagged potential historic asbestos to ensure safe future council works.
Immediate Hazard Control: Mandated a high-level specialist inspection to secure or remove the falling hazard of the leaning stone cross within Conservation Area guidelines.
Foundation & Site Stabilization: Advised an arborist to implement TPO-compliant root barriers or canopy reductions, and recommended a CCTV drainage survey to check for pipe leaks.
